LED Flex Sheet DE-FL2 24V 20,8W/m 600led/m 6500K IP20 (240mm x 4,8m roll) 3M
Code: 582211
Related products
Product detailed description

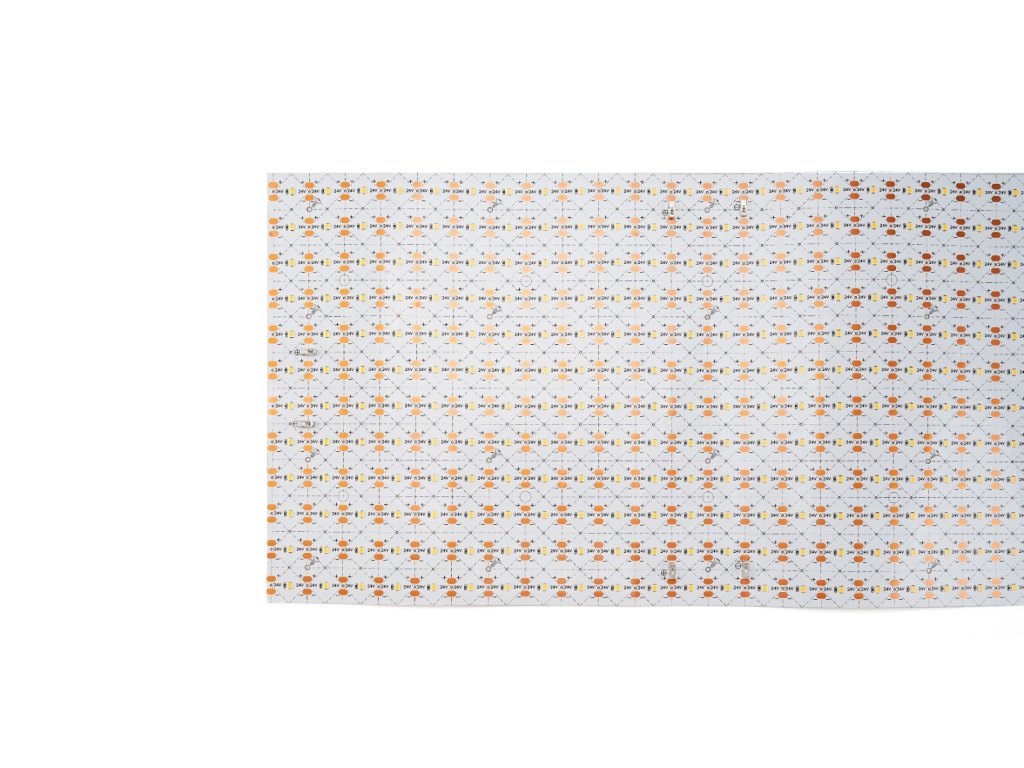

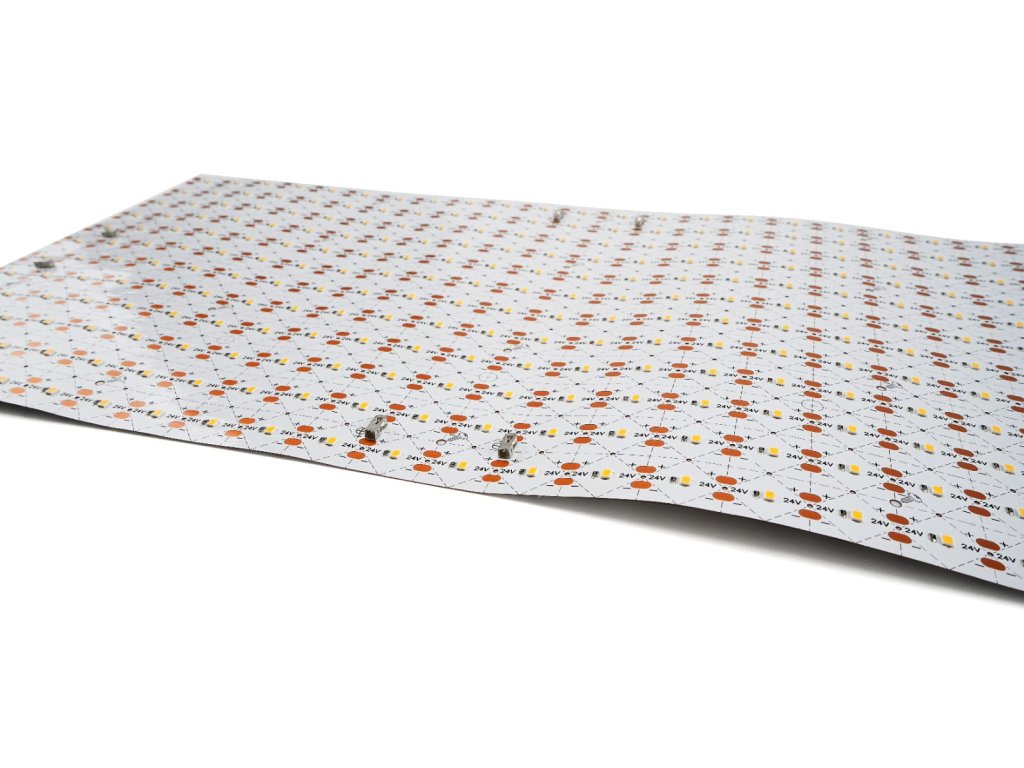

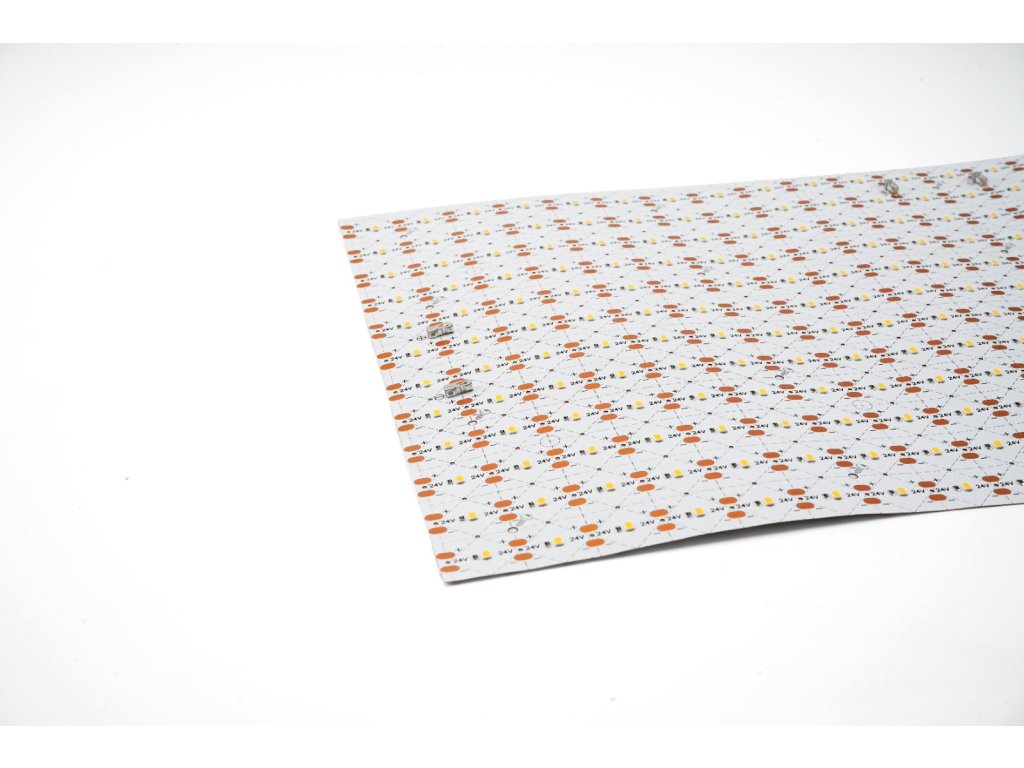

High-efficiency LED Flex panels for lightboxes
LED Flex panels are designed to evenly illuminate stretch ceilings, light boxes and commercial spaces. They are based on a soft flexible membrane with a high density of LEDs (576 LEDs/m), which guarantees a completely continuous lighting effect with maximum color consistency.
Key features of LED modules
- Easy installation: Quick attachment with integrated high-quality adhesive tape.
- High efficiency: Uniform light without shadows.
- Wide application: Ideal for light panels (lightboxes).
The LED Flex panel has high flexibility and material resistance to bending. During installation, the strip must not be twisted or bent to a diameter of less than 6 cm.
Specifications
- Voltage: 24 VDC
- Power consumption: 10 W
- Maximum length: 4,8 m
- Colour: 6000-6500 K
- Luminous flux: 930 lm/pcs
- Operating temperature: -25°C to +45°C
- Storage temperature: -30°C to +80°C
- Protection: IP20
- In-depth application: 50-110 mm
- Guarantee: 5 years
- Dimmable: Yes
- Divisibility: Every 20 mm
- Angle: 120°
- Distance between centers: 20 mm

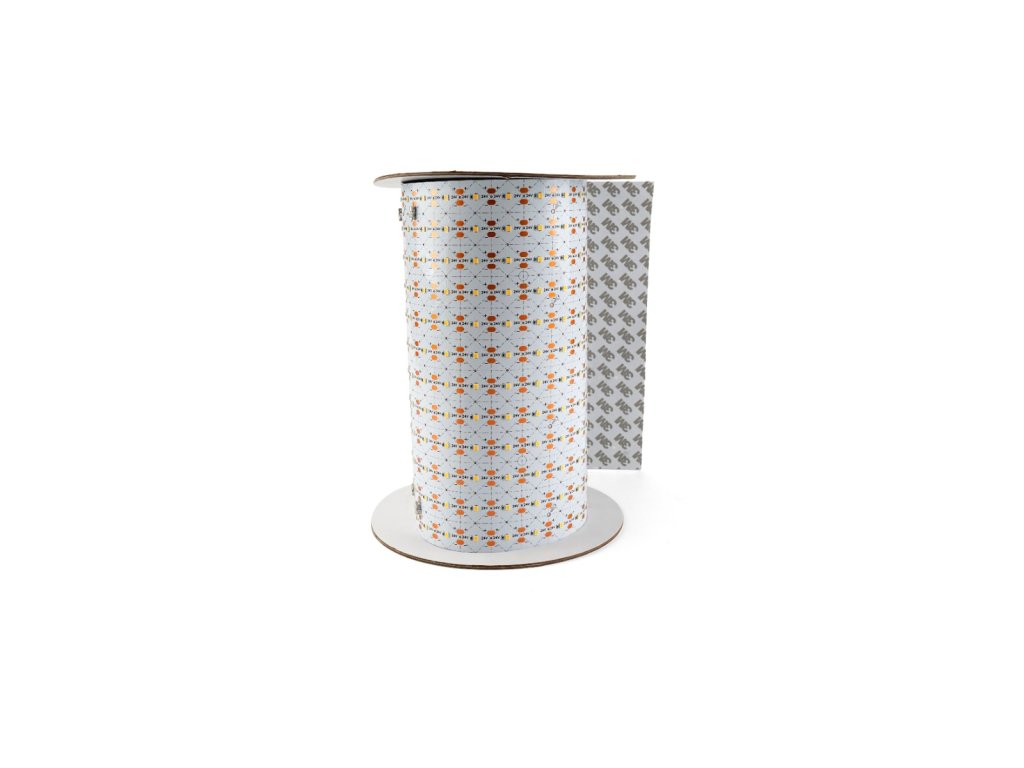

- Dimensions: 240 mm x 4,8 m roll
Additional parameters
| Category: | 24V Backlight |
|---|---|
| Weight: | 0.016 kg |
| Availability: | On request |
| Color: | White |
| Dimension width: | 0 mm |
| Chromaticity temperature: | 2700 K |
| Coil: | 0 m |
| Number of LEDs: | 1200 ks |
| Luminous flux: | 6880 lm |
| Operating voltage: | 24 V |
| Power consumption / pc: | 10 W |
| Power consumption / m: | 0 W |
| Degree of IP protection: | 20 |
| Warranty period in months: | 24 |
| Cutting to size - sheets: | No |
| Cutting to size - profiles: | No |
| The item has been sold out… | |
