    LED Module D175-4 200lm/W 12V DC 1,2W 7000K 240lm

    Code: 541224
    Obrázek 1
    €2,27 / pcs €1,88 excl. VAT
    In stock (>10 pcs)

    The new LED module technology delivers extremely high luminous efficiency and, thanks to the special design of the integrated transparent optical lens with a very wide beam angle, the light is perfectly uniform across the entire application area. The modules can be installed with larger spacings, thus achieving a very low density. As a result, a significantly smaller number of LED modules is required for high-quality backlighting.

    Detailed information

    Regular delivery
    Regular delivery
    Combination of our own delivery trucks and external couriers
    Professional advice
    Professional advice
    Our team is ready to assist you in any project you have
    Material customization
    Material customization
    milling, formatting, cutting
    Warehouse in Zlin
    Warehouse in Zlin
    over 800 tons of material in stock
    Many years of experience
    Many years of experience
    more than 30 years on the market

    Product detailed description



    High-efficiency LED modules for 3D graphics, letters and lightboxes

    Are you looking for reliable and energy-efficient LED modules for illuminating 3D graphics, advertising letters or light boxes? Our modern LED technology delivers top efficiency thanks to the innovative micro-lens design, which ensures uniform light dispersion across the entire applied area.

    Key features of LED modules

    • High efficiency: Uniform light without shadows.
    • Wide application: Ideal for 3D graphics, letters and light panels (lightboxes).
    • Energy saving: A smaller number of LED modules is enough to achieve a perfect result.

    Our LED modules are designed to meet the most demanding quality and performance requirements and are suitable for both indoor and outdoor use. Thanks to their optimized parameters, they are the ideal solution for advertising and decorative lighting.

    Specifications

    • Voltage: 12 VDC
    • Power consumption: 1,2 W
    • Maximum number of modules in a row: 20 pcs
    • Colour: 7000 K
    • Luminous flux: 240 lm
    • Operating temperature: -25°C to +60°C
    • Storage temperature: -25°C to +70°C
    • Protection: IP66
    • In-depth application: 40-150 mm
    • Guarantee: 5 years (including 6 months extended warranty)
    • Dimmable: Yes
    • Divisibility: Between each LED module
    • Angle: 170°
    • Distance between centers: 198 mm

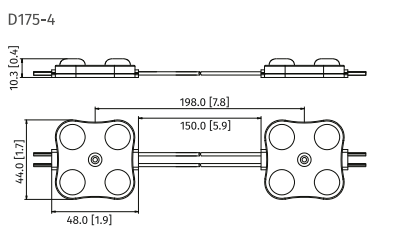

    • Dimensions: 48 × 44 × 10,3 mm
    Note: The extended warranty includes additional installation costs, up to 3 times the value of the claimed LED modules.

    Recommended layout of LED modules

    Depth Axis spacing lm/m²
    40 mm 80 x 80 mm 37 500
    50 mm 100 x 100 mm 24 000
    60 mm 110 x 110 mm 19 835
    70 mm 120 x 120 mm 16 667
    80 mm 130 x 130 mm 14 201
    90 mm 140 x 140 mm 12 245
    100 mm 150 x 150 mm 10 667
    110 mm 160 x 160 mm 9 375
    120 mm 170 x 170 mm 8 304
    130 mm 180 x 180 mm 7 407
    140 mm 190 x 190 mm 6 648
    150 mm 190 x 190 mm 6 648
    Note: Recommended spacings apply to opal plexiglass LT 30%.

    Additional parameters

    Category: 12V Backlight
    Weight: 0.014 kg
    Availability: In stock
    Color: White
    Chromaticity temperature: 7000 K
    Number of LEDs: 4 pcs
    Number of modules in chain: 20 pcs
    Luminous flux: 240 lm
    Efficiency: 200 lm / W
    Input voltage: 12
    Power consumption / pc: 1,2 W
    Degree of IP protection: 65
    Warranty period in months: 60
    Cutting to size - sheets: No
    Cutting to size - profiles: No
    Balení: 80/960
