    Home / LED technology / LED modules / 12V Edgelight (Side light) / LED Module DXS-3 W/ Optics 12VDC 2,5W IP66 7000K

    LED Module DXS-3 W/ Optics 12VDC 2,5W IP66 7000K

    Code: 511213
    Obrázek 1
    €2,19 / pcs €1,81 excl. VAT
    In stock (>10 pcs)

    LED module DXS-3 with side light:

    • Sourced by high performance SMD 3030 with a lifetime of 50 000 hours
    • 99,99% gold tread, pure copper bracket coated with silver

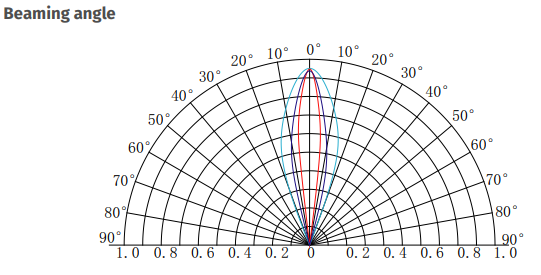

    • Special lens design, 29° x 34° beaming angle with even light and no spot
    • Anti-dusting, anti-moisture, waterproof, anti-shock
    • 20 pcs max in a series connection
    • Suitable for illuminating boxes up to 1,5m away with modules facing each other, length unlimited!

    Detailed information

    Regular delivery
    Regular delivery
    Combination of our own delivery trucks and external couriers
    Professional advice
    Professional advice
    Our team is ready to assist you in any project you have
    Material customization
    Material customization
    milling, formatting, cutting
    Warehouse in Zlin
    Warehouse in Zlin
    over 800 tons of material in stock
    Many years of experience
    Many years of experience
    more than 30 years on the market

    Related products

    Obrázek 1
    LED Module DXS-3 W/ Optics 12V DC 2,88W IP65 7000K
    In stock (>10 pcs)
    €1,93 excl. VAT
    €2,34

    LED module DXS-3 with side light: Sourced by high performance SMD 3030 with a lifetime of 50 000 hours 99,99% gold tread, pure copper bracket coated with silver Special...

    Code: 501323
    Obrázek 1
    LED Module DXS-1 W/ Optics 12VDC 1,32W IP66 7000K
    In stock (>10 pcs)
    €1,17 excl. VAT
    €1,41

    LED module DXS-1 with side light: Sourced by high performance SMD 3030 with a lifetime of 50 000 hours 99,99% gold tread, pure copper bracket coated with silver Special...

    Code: 511211
    Obrázek 1
    MEAN WELL LPV-35-12 230V / 12Vdc 3A 36W IP67
    In stock (>10 pcs)
    €11,88 excl. VAT
    €14,38

    MEAN WELL LPV-35-12 is a 12V power supply with rated power 36W / 3A, ideal for LED strips and LED modules. Fully insulated plastic case with protection IP67...

    Code: 8603512
    Obrázek 1
    MEAN WELL LPV-60-12 230V / 12Vdc 5A 60W IP67
    In stock (>10 pcs)
    €13,33 excl. VAT
    €16,13

    MEAN WELL LPV-60-12 is a 12V power supply with rated power 60W / 5A, ideal for LED strips and LED modules. Fully insulated plastic case with protection IP67...

    Code: 8606012
    Obrázek 1
    MEAN WELL LPV-100-12 230V / 12Vdc 8,5A 100W IP67
    In stock (>10 pcs)
    €21,91 excl. VAT
    €26,51

    MEAN WELL LPV-100-12 is a 12V power supply with rated power 100W / 8,5A, ideal for LED strips and LED modules. Fully insulated plastic case with protection IP67...

    Code: 8610012
    Obrázek 1
    MEAN WELL XLG-75-12-A 230V / 12Vdc 5A 60W IP67
    On request
    €23,64 excl. VAT
    €28,61

    MEAN WELL XLG-75-12 is a 12V LED AC/DC power supply with constant power 60W/5A. The metal housing and IP67 protection level make it suitable for both indoor and outdoor use from...

    Code: 9007512A
    Obrázek 1
    MEAN WELL XLG-100-12-A 230V / 12Vdc 8A 96W IP67
    In stock (>10 pcs)
    €27,35 excl. VAT
    €33,09

    MEAN WELL XLG-100-12 is a 12V LED AC/DC power supply with constant power 96W/8A. The metal housing and IP67 protection level make it suitable for both indoor and outdoor use...

    Code: 9010012A
    Obrázek 1
    MEAN WELL XLG-150-12-A 230V / 12Vdc 12.5A 150W IP6
    In stock (>10 pcs)
    €28,50 excl. VAT
    €34,48

    MEAN WELL XLG-150-12 is a 12V LED AC/DC power supply with constant power 150W/12,5A. The metal housing and IP67 protection level make it suitable for both indoor and outdoor use...

    Code: 9015012A
    Obrázek 1
    MEAN WELL XLG-200-12-A 230V / 12Vdc 16A 192W IP67
    In stock (>10 pcs)
    €32,88 excl. VAT
    €39,78

    MEAN WELL XLG-200-12 is a 12V LED AC/DC power supply with constant power 192W/16A. The metal housing and IP67 protection level make it suitable for both indoor and outdoor use...

    Code: 9020012A
    Obrázek 1
    LED Module DNH-4 230V AC 1W 6500K
    In stock (>10 pcs)
    €2,34 excl. VAT
    €2,83
    Code: 571104
    LED Flex Sheet DE-FL1 24V 10,00W/m 1200led/m 6500K IP20 120x10mm (120mm x 8m roll) 3M
    In stock (>10 pcs)
    €208,76 excl. VAT
    €252,60
    Code: 582202
    LED Flex Sheet DE-FL1 24V 10,00W/m 1200led/m 2700K IP20 120x10mm (120mm x 8m roll) 3M
    In stock (>10 pcs)
    €208,76 excl. VAT
    €252,60
    Code: 582201
    LED Bar DE-LB2 mounting clip
    On request
    €2,34 excl. VAT
    €2,83
    Code: 581102-CLIP
    LED Bar DE-LB1 24V 5,76W 7000K IP20 960x17mm
    On request
    €2,34 excl. VAT
    €2,83
    Code: 581101
    LED Bar DE-LB2 24V 10,00W 7000K IP65 930x17mm
    On request
    €2,34 excl. VAT
    €2,83
    Code: 581102
    Show all related products Previous product Next product

    Product detailed description



    Parameters
    Code 511213
    Voltage 12 V DC
    Color 7000 K
    Power consumption / module 2,5 W
    Luminous Flux 250 lm
    Luminous efficiency 100 lm/W
    CRI >75 Ra
    Beam angle 29°× 34°
    P/D Ratio (pitch/depth) N/A
    For application depth 8 - 20 cm
    Weight 12,5 g
    Dimensions 74 × 20 x 9,8 mm
    The center distance of the modules 155 mm
    Operating temperature -25 to +60 °C
    Connection quantity 20
    IP Rate IP66
    Life time L70B50 50.000 hours
    Warranty 5 years

    Additional parameters

    Category: 12V Edgelight (Side light)
    Weight: 0.013 kg
    Availability: In stock
    Color: White
    Chromaticity temperature: 7000 K
    Number of LEDs: 3 pcs
    Number of modules in chain: 20 pcs
    Luminous flux: 250 lm
    Input voltage: 12
    Power consumption / pc: 2,5 W
    Degree of IP protection: 66
    Warranty period in months: 60
    Balení: 90
